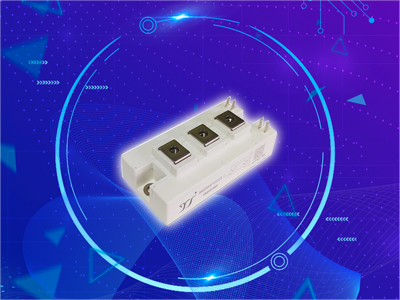

High frequency C3 IGBT Module
High frequency C3 IGBT Module Back
 PDF

Introduction 1、The high frequency series IGBT modules mainly have C3(45mm) package;
2、VCES =1200V，IC= 150A~200A；
3、Mainly used in high frequency applications such as motor drives, servo, etc.;
4、The high frequency IGBT modules and other market mainstream products are completely pin to pin alternatives；
5、Environmentally friendly complying with RoHS standards；
Features 1、Tjmax=175℃;
2、Low Vce(sat), suitable for low and medium frequency applications；
3、Freewheeling diode with ultra-fast and soft recovery characteristics；
4、With high short-circuit support current capability (above 10us)；
5、Using the insulating baseplate of DBC structure；
SPECIFICATION

IGBT-中低频系列C3�？�
